49' One Off Ocean Cruiser Racer "Serendib IV"                          Home

Designed and built at Molich, Hundested, Denmark in 1970 for a demanding client who loved Ocean Racing.
Modern S&S inspired under water hull. The yacht came in as No. four in the 4000 NM long Cape Town - Rio ocean race in 1971.
LOA 14,85 m - Beam 4,00 m - Draft 2,30 m. Walsted have serviced the yacht since 1980


Inventory list & Specifications Navigations

B&G, Navigation / Chart plotter , Vulcan, 12"
Simrad Radar 2kw, HALO20
Simrad Forward scan / sonar
NMEA  2000 Network compatible with NMEA 0183 network
Quark NMEA 2000 AIS+GPS Receiver with NMEA Multiplexer and Ethernet, N2K, WiFi used for Isailor
Installed 2021


Simrad AP 16 Autopilot
Simrad HLD 350Mk2 Hydraulic Linear Drive (24v)

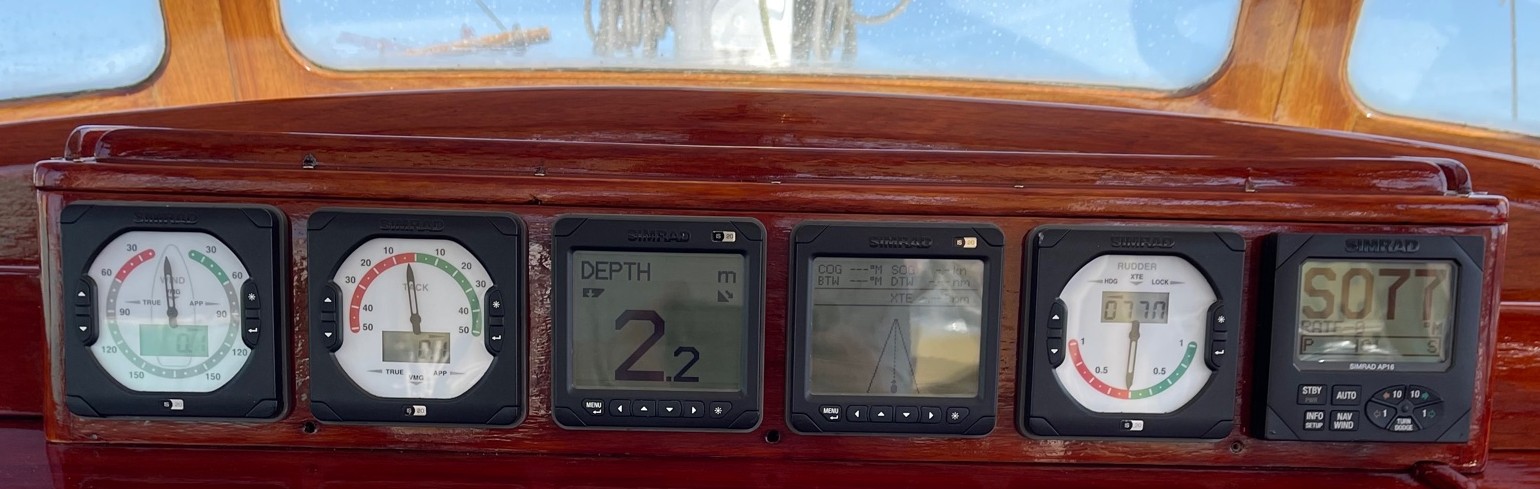

Simrad IS 20, Wind, (New  wind sensor from 2023)
Simrad IS 20 Track
Simrad IS 20 Rudder
Simrad IS 20 Combi
Simrad IS 20 Graphic
Simrad GS 10 GPS antenna
Simrad combined Log and depth transducer
Simrad Sim net (NMEA 0183)
Installed 2008

Shipmate RS5400 GPS / Chartplotter Color (Old need new backup battery else ok)
Sailor VHF RT144C (Renovated in 2021 working as new)

Engine and electrical installations
Perkins Sabre M92 Main engine (91hp diesel 4 stock) Include  HSW 450A Gearbox. Separated start battery on 12v,
mounded with 2 generators 12v and 24v, Installed 1999, Running Hrs 1150.

Mastervolt Alpha 24/75 Evo (including charge regulator) 24v 75Amp Generator
Mastervolt MasterShunt + EasyView 5 Integrated battery and charge monitor
Installed 2023

Ardic Warm air unit 1024WA  for engine heat or fresh air supply
Eberspacher D5LC Air Heater 8kw or fresh air supply Installed 2021 (Max running Hrs 30) Suctions from ​separately 30L tank
Tysor Battery charger 24v  35A
ALDE 220v engine heater
Isotemp Water Heaters 220v Water heater 25 Liters Installed 2021
Danfoss Refrigerate compressor, installed in eng-room, water cooled, Installed 2022

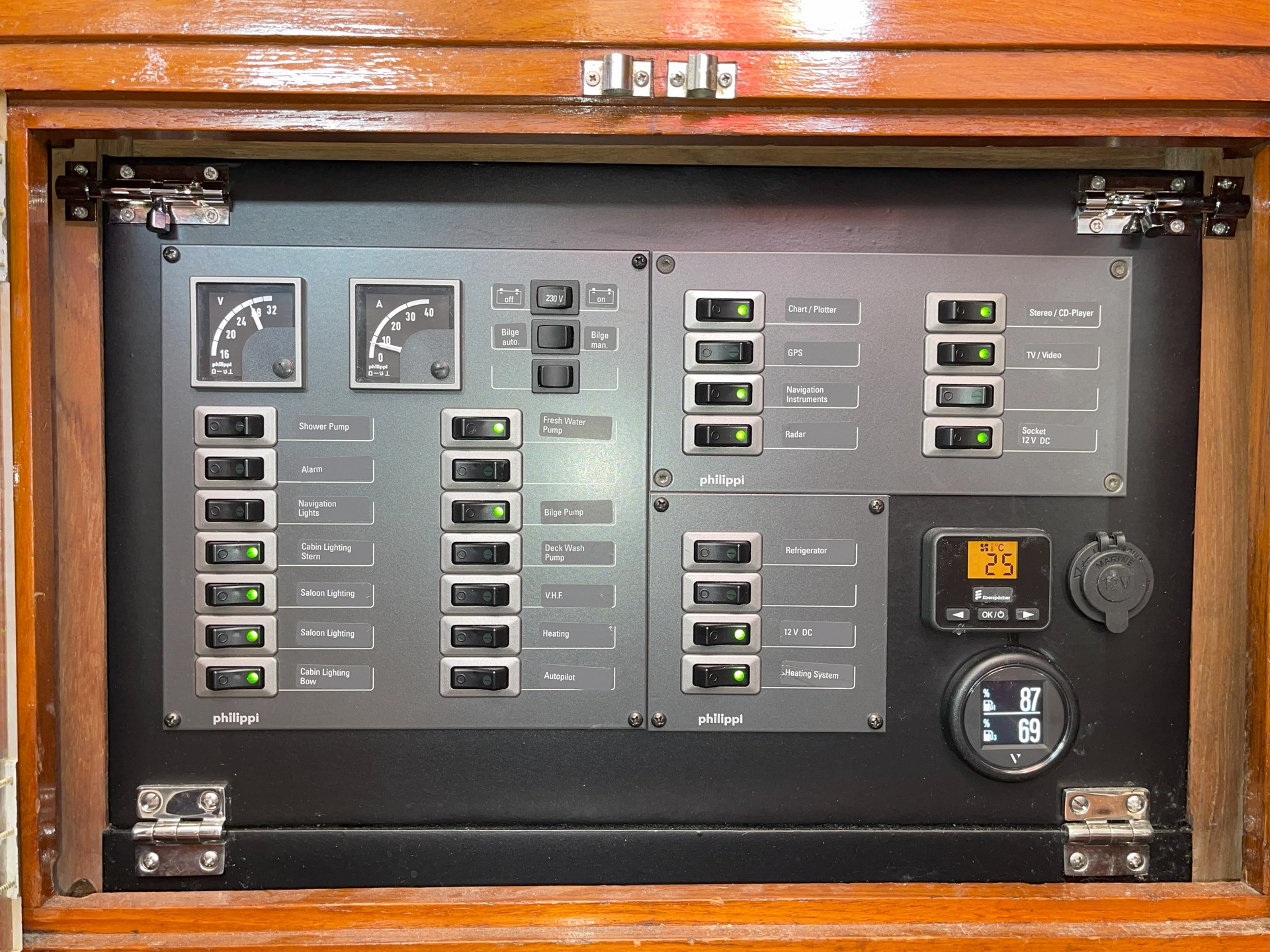

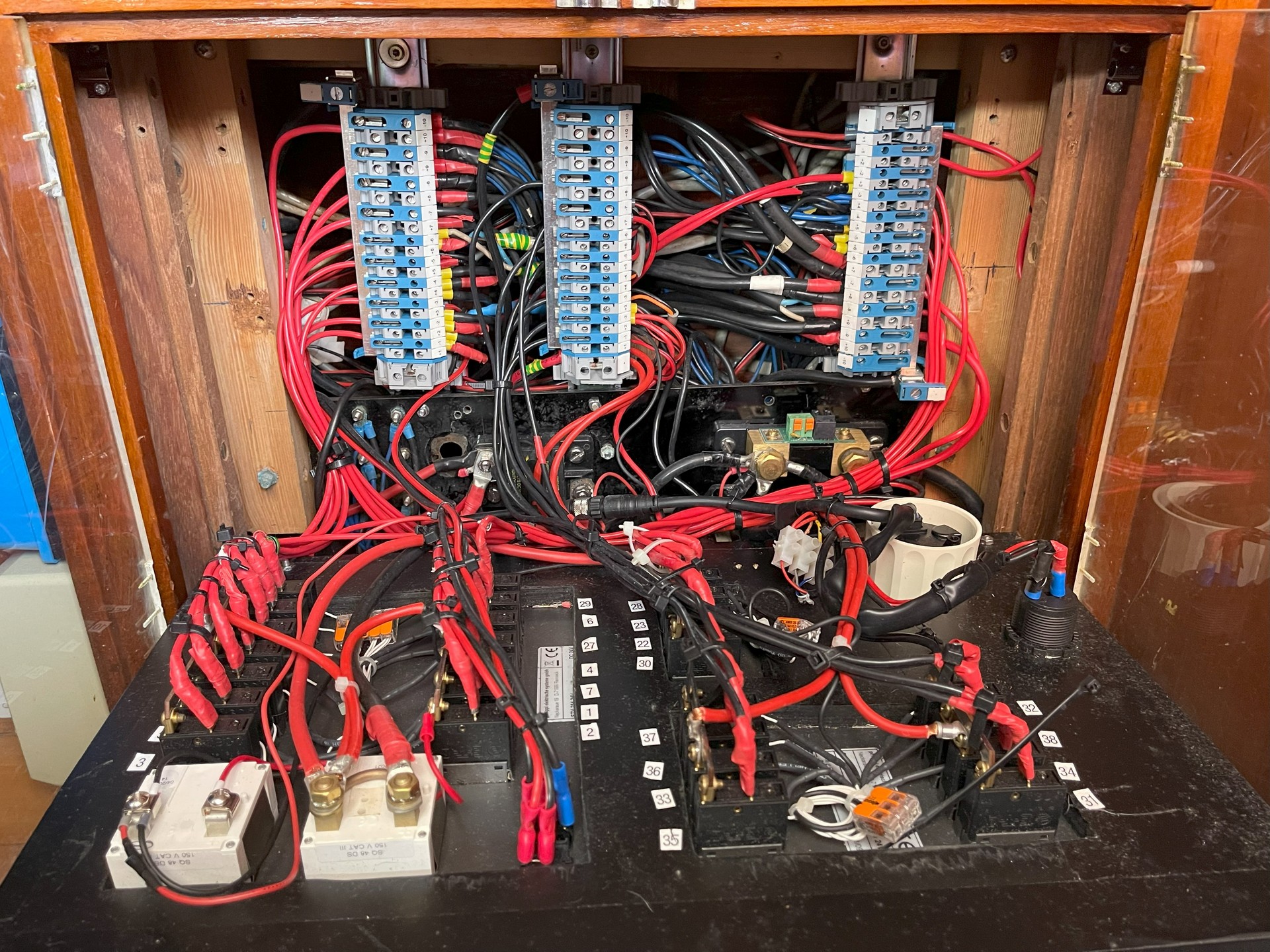

Philippi El panel (Germany) Installed  2021, include new slots (2*24v + 1*12v) all cables / ​connections overhauled, constructed for easy access
In 3 panels 14 * 10amp 24v / 4 * 25amp 24v /  8 * 10amp 12v















24v to 220v Converter 700watt
24v to 12v Converter 24Amp

Tank Capacity
Diesel: 250 liters in two tanks (140 Main center + 110 Liters installed in eng-room SB ) Eng. suctions from main tank only
Water: 340 Liters in two ss tanks
Wema NMEA 2000 Water sensor
Oceanic Systems NMEA2000 Fuel Sender in main diesel tank
VL Flex 52 - NMEA 2000 Readout diesel and fresh water

Endurance on Engine
1800 rpm / consumption is 4,0 Liter per hour - Speed  5.0 knots
2100 rpm / consumption is 7,0 Liter per hour - Speed  6.5 knots
Max range on engine alone is then 62 hours at 5 knots = 310 NM

Safety equipment
2  ABC  6 kg fire extinguisher (New expires 2029)
1  Co2 Eng. fire extinguisher 19kg fixed mounded SB
Fire alarm
Combined fire and sump pump installed on main eng.


Sails and Rig
Furlex rolling forestay  2006
Green sails 2006 genua,  Serviced and vu filter replaced in 2020, in good conditions
Main Sail, Green Sails 2006, ​Serviced in 2020, in good conditions
Spinaker 1, Elvstrøm old but in good conditions (Drifter abt 230m2 only user 2 times in 24 years) Require pole
Genakker (used from a X-47), Abt 130m2 in good conditions, include new Black Box Snuffer for easy handling

Deck Equipment
Mast winces
Barlow 24 2 speed
2 * Barlow 20 single speed
Barlow wire 2 speed

Cockpit
2 * Barlow 35 2 speed
2 * Barlow 30 2 speed
Barlow 20 Single speed

Anchor wince
Loufrans 24v 1000w

All winces in good conditions

Other
Radio / CD player
Tv / Dvd
