Ship stanchion / template

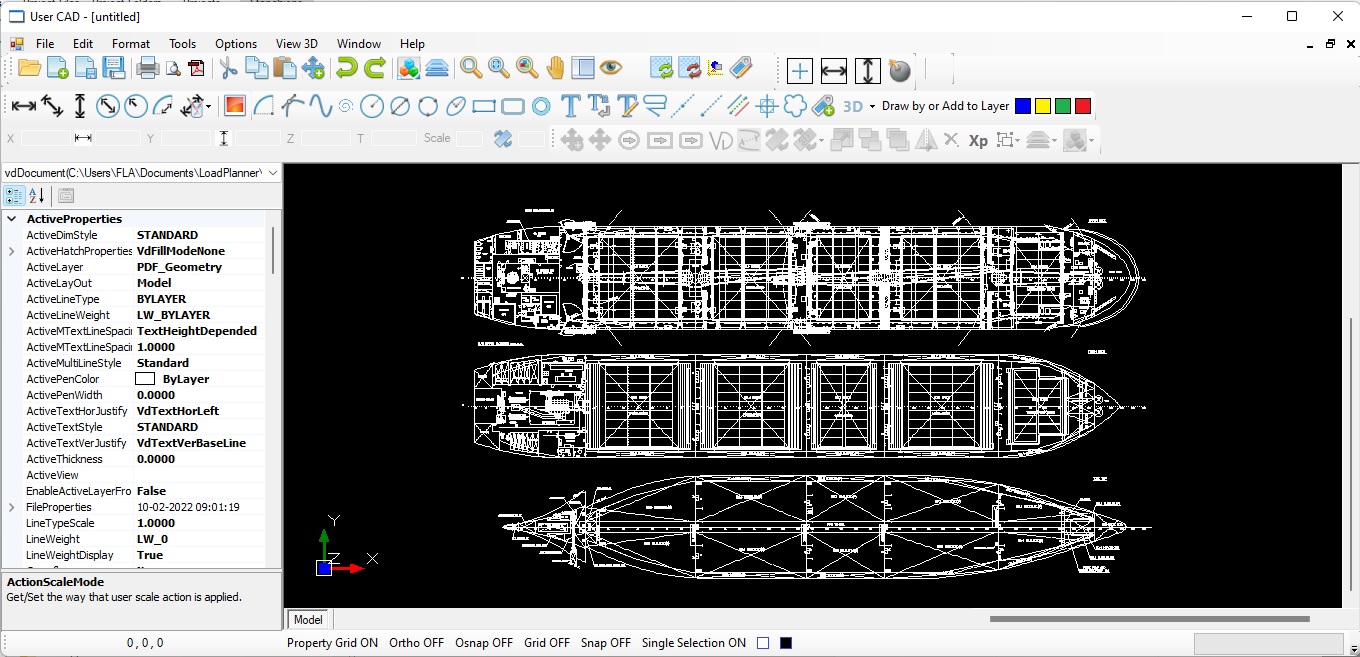

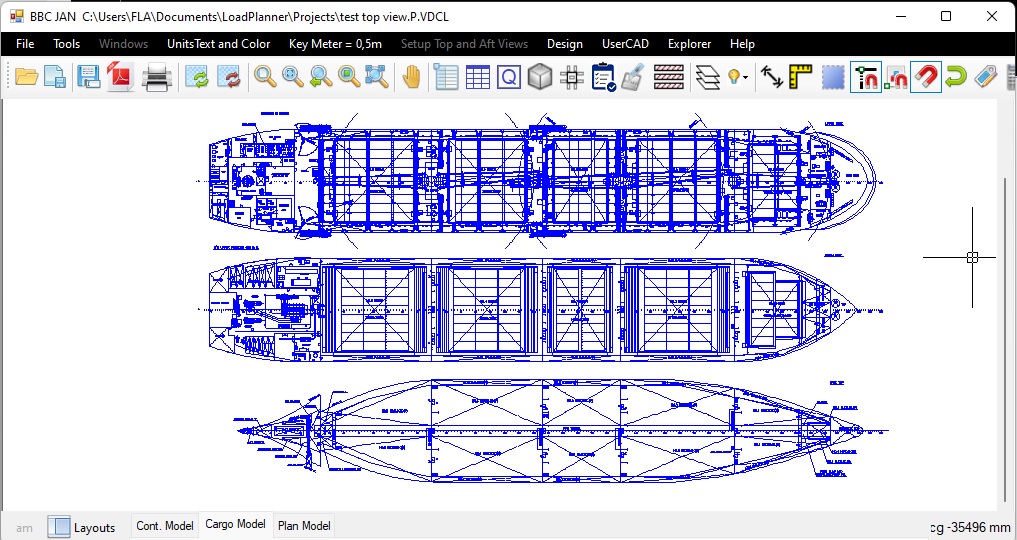

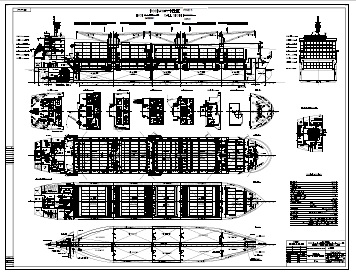

A ship stanchions or template can be in varies levels, from a GA plan in PDF converted to CAD, scaled to correct measurements. Edited in the UserCAD, used as a top view plan for cargo planning and take less than 3 minutes to create.
Simple 3D Stanchions as a box / container or barge to complex stanchion include bulk and container setting. Options to add crane simulations and stability calculations.

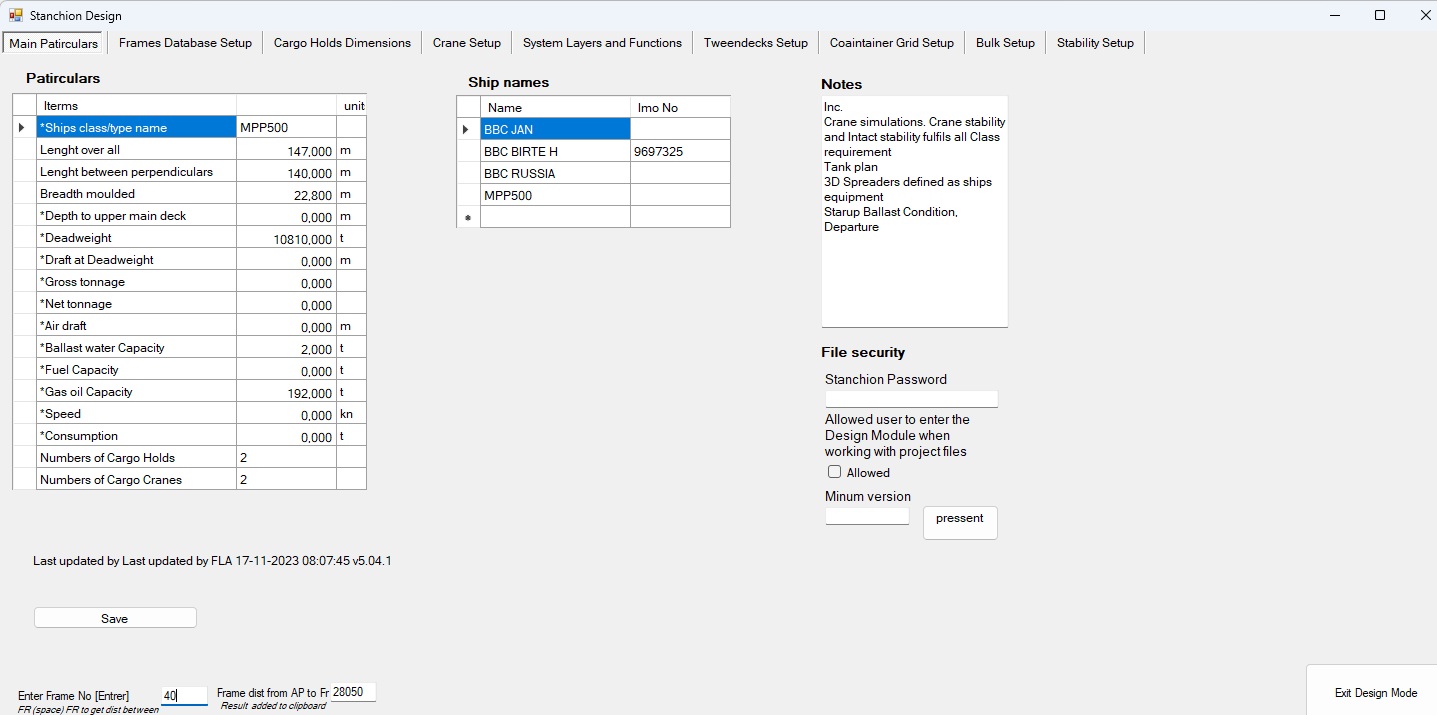

Main particulars

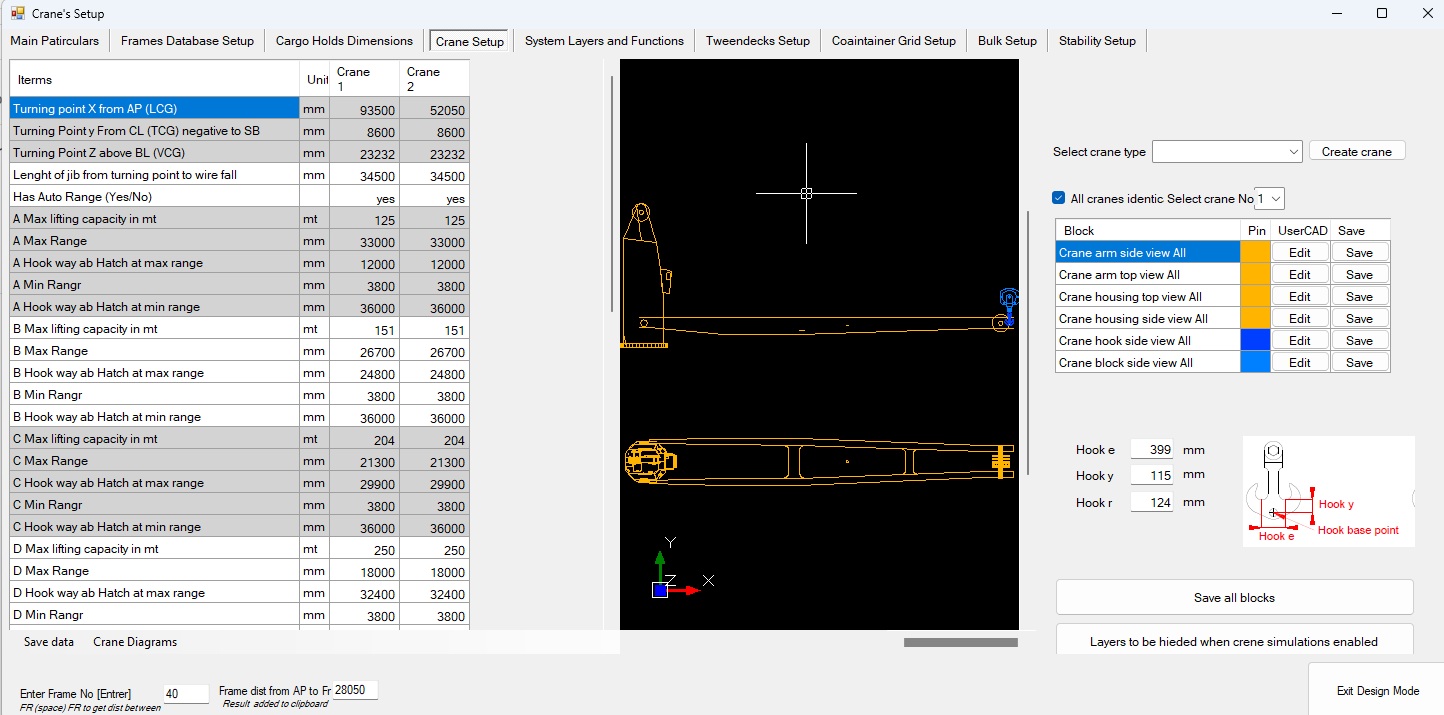

Cranes settings

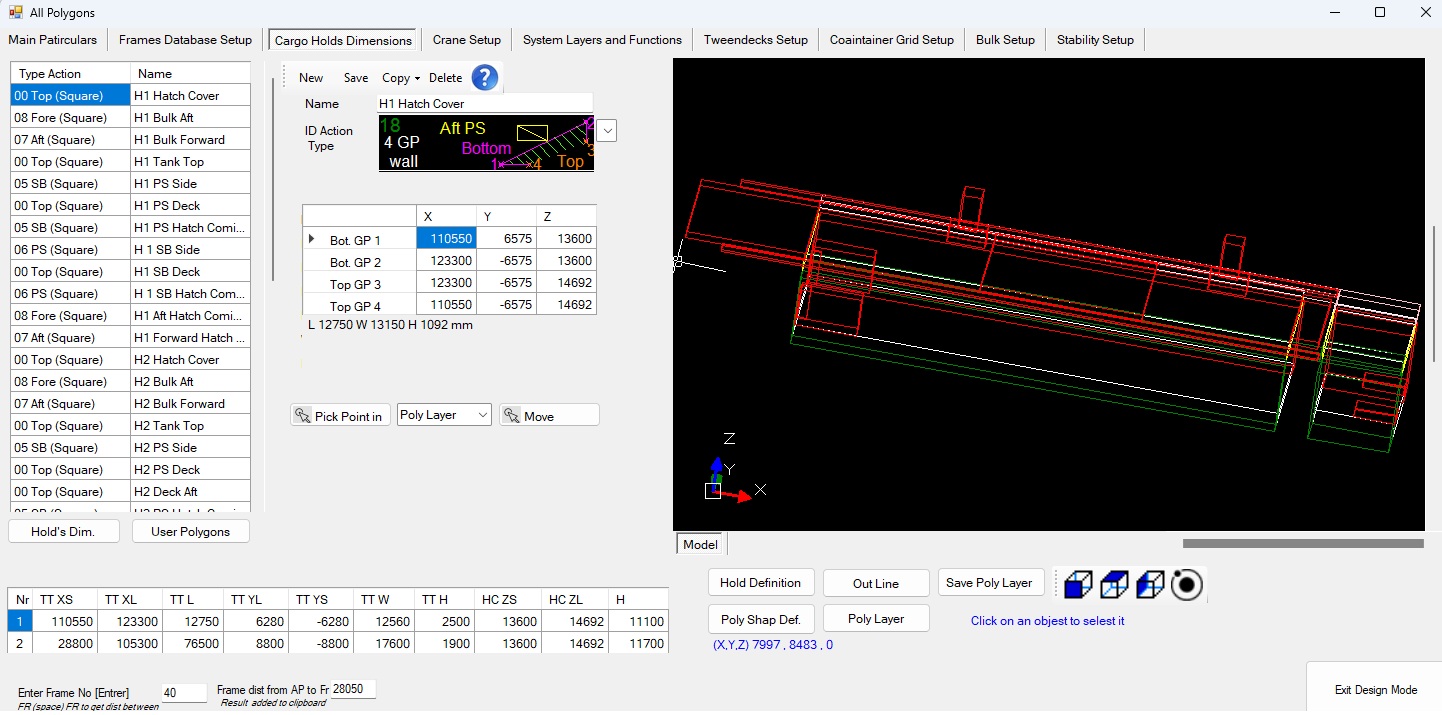

S​hip structure

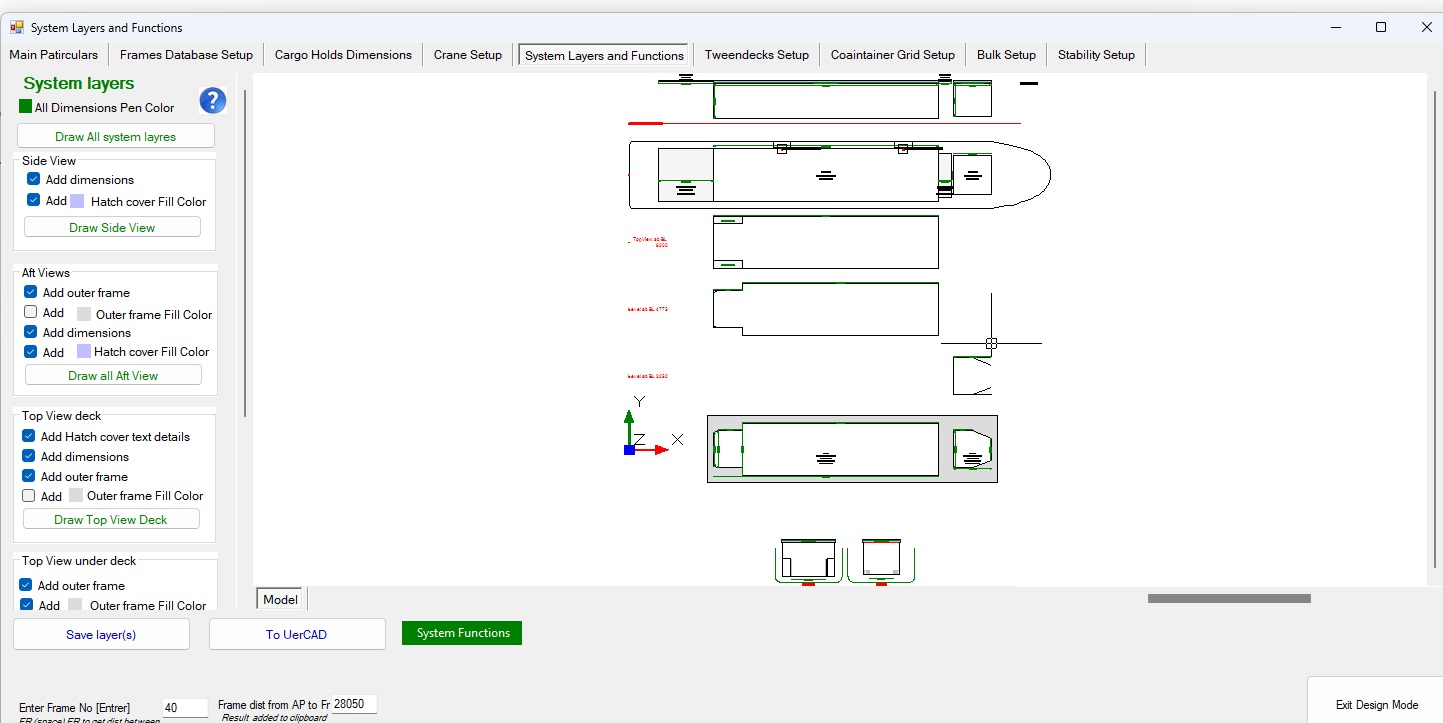

System layers

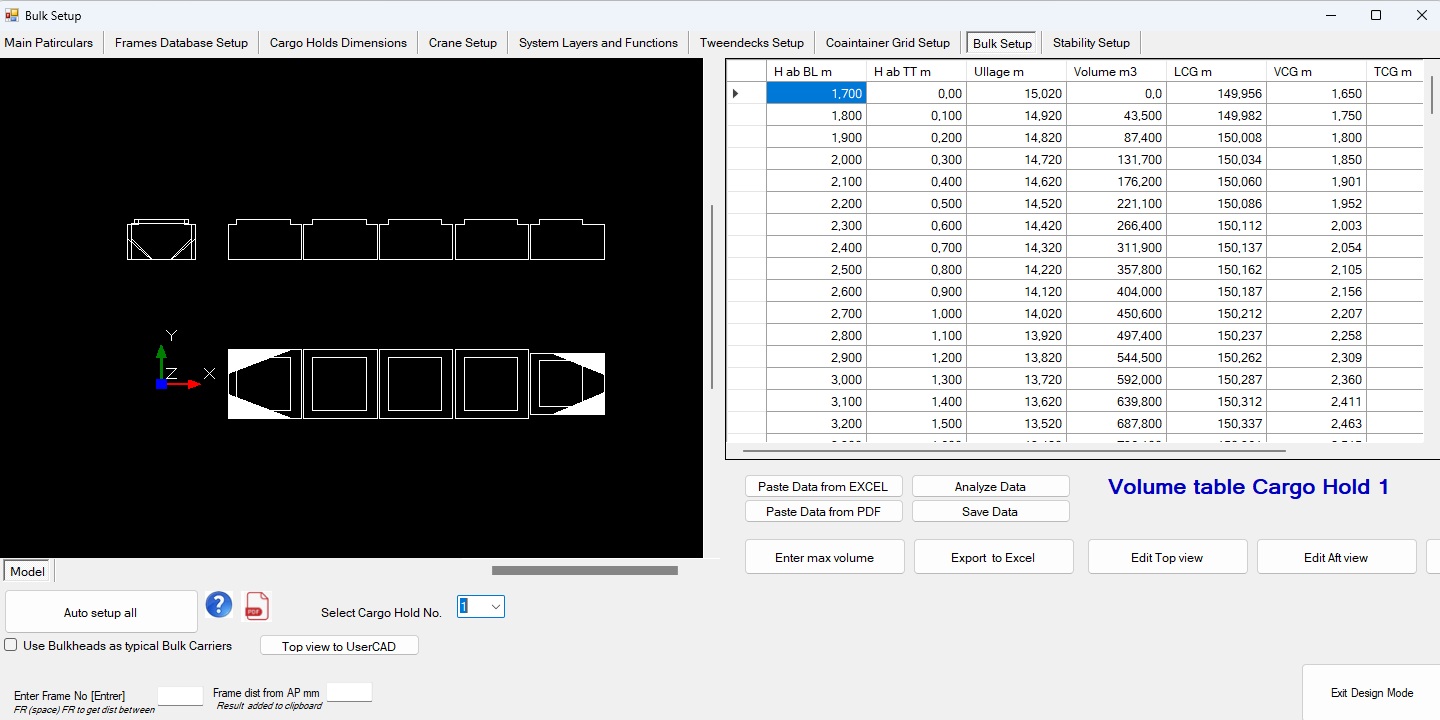

Bulk setup
Tweendeck setup
To create a
ship stanchion, requires some skills in cad drawing and knowledge of ship geometry.
Adding stability,
you need to know about ships stability and hydrostatic data etc..
But all
data is easily collected from a stability manual by copy and paste data.
And to
march class approved, no problems.
LoadPlanner.DK also provide ship stanchions on request.

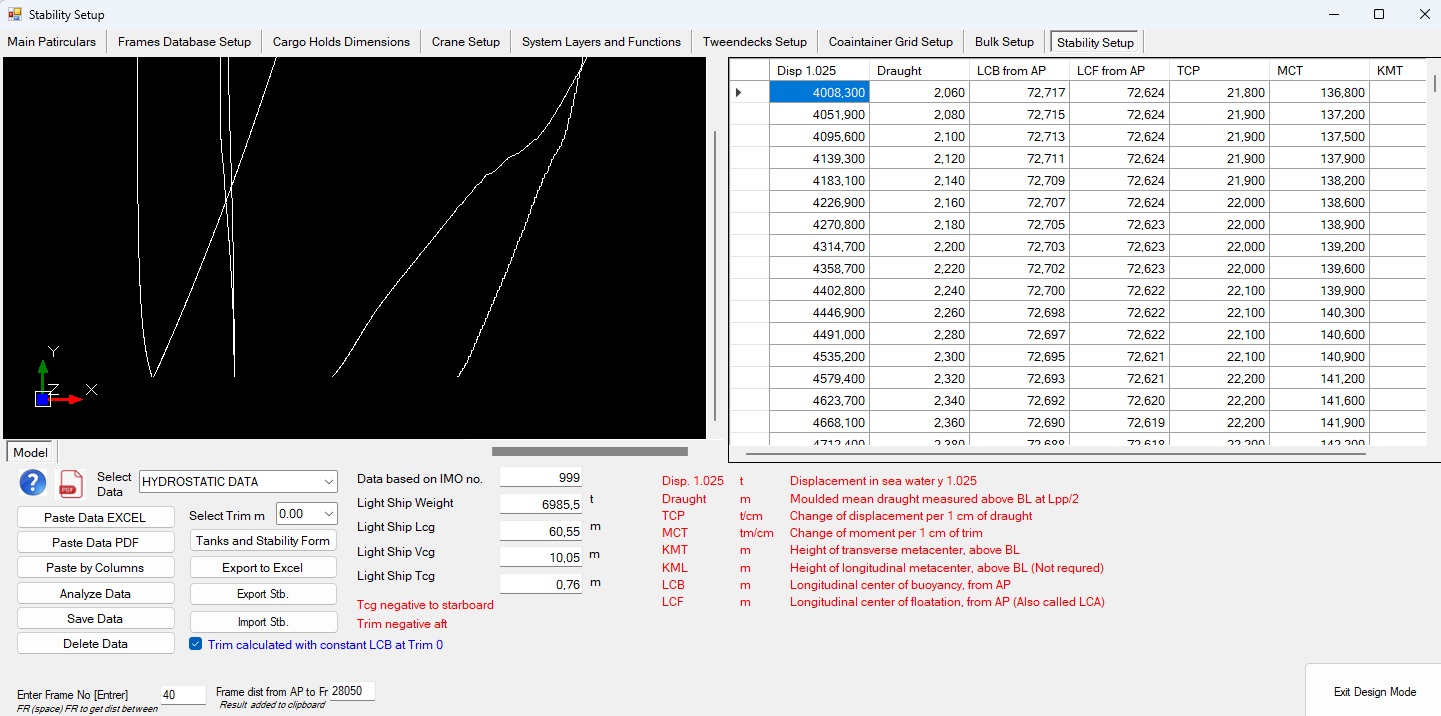

Stability setup
